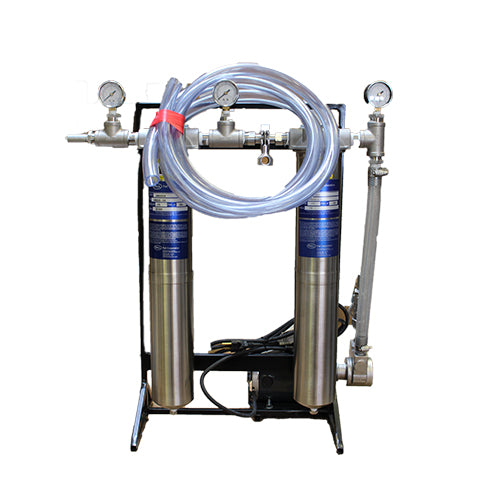

PIWC Double Wine Filter Unit: Two 20" Stainless Steel Housing with a 240gph Stainless Steel Pump

Double 20" DOE Stainless Steel Housings,  240gph stainless steel pump on a Metal Stand, pressure gauge, 10ft of 3/4" clear thick walled plastic tubing and directions.  Stainless construction provides superior durability and sanitation.  These units are commercial quality and have been assembled and sold by us for over 50 years. Different configurations are available, but they all use the cartridge type media. These units are rugged, cost effective, and suitable for operations producing up to around 15,000 gallons per year.

The double housing allows two levels of filtration to be achieved in a single pass for greater efficiency and time economy.  This economical and time-tested PIWC unit consists of a positive displacement self priming pump with an external prescreen (never run a pump without the screen in place), carbonator motor, dual cartridge housings, metal stand, 10 feet of hose, and connectors. The units are ready to use as soon as 20" cartridges are inserted and prepped. An excellent choice for commercial wineries producing up to around 15,000 gallons per year.

Other filter unit configurations are available.  Call us to customize your unit to meet your specific needs.

Learn more about wine filtration.

This unit is compatible with all 20" PIWC brand and Graver Watertec double open end (DOE) filter cartridges we carry.

Click Here for Filter Unit Instructions
