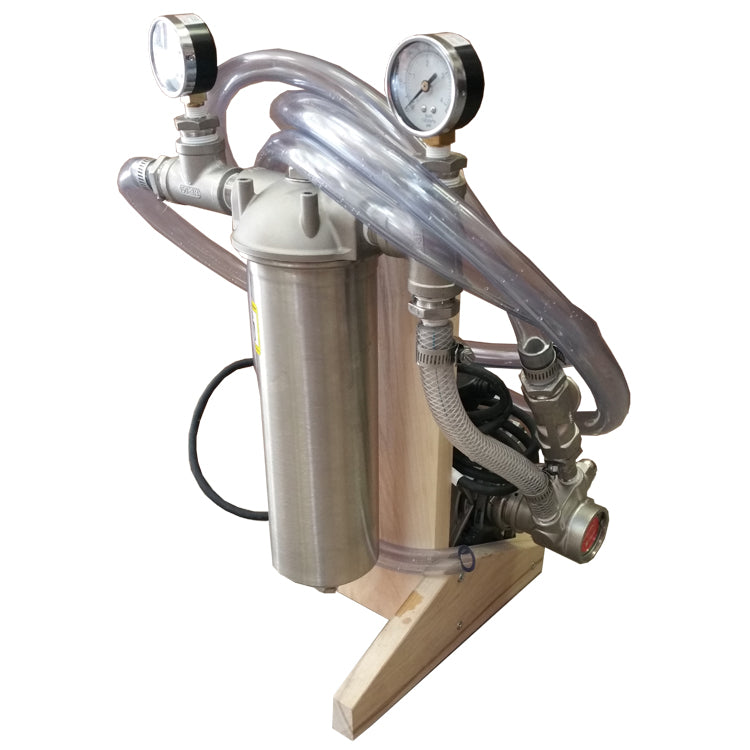

PIWC Wine Filter Unit: 10" Stainless Steel Filter Housing with 100gph Stainless Steel Filter Pump

10" Stainless Steel Filter Housing, 100 gph stainless steel pump, pressure gauge, 10ft of 5/8" clear thick walled plastic tubing and directions. Stainless housing construction provides superior durability and sanitation.

These units are commercial quality and have been assembled and sold by us for over 50 years. Different configurations are available, but they all use the cartridge type media. These units are rugged, cost effective, and suitable for operations producing up to 10-15 thousand gallons per year, with typical batches being around 500 gallons or less. This economical and time-tested PIWC unit consists of a positive displacement self priming pump with either an internal or external prescreen (never run a pump without the screen in place), carbonator motor, cartridge housing, stand, 10 feet of hose, and connectors. These units are ready to use as soon as a 10" cartridge is inserted and prepped. An excellent choice for small commercial wineries producing up to around 10,000 gallons per year.

Other filter unit configurations are available.  Call us to customize your unit.

Learn more about wine filtration.

This unit is compatible with all 10" PIWC brand and Graver Watertec double open end (DOE) filter cartridges we carry.

Click Here for Filter Unit Instructions
