Stainless Steel Wine Tanks



---

These versatile high-quality open top variable capacity stainless steel wine tanks are a great piece of equipment for the wine cellar.  Designed with adjustable floating lids to permit variation in the tank volume with the volume of contained lliquid and can be used for fermentation, wine storage, and bottling.  The lids have a built in air lock and an expandable pneumatic vinyl edge gasket with an attached air pump to seal the top to the sides of the tank at any desired level.



Tanks have threaded opening at the bottom where the spigot/valve attaches. 600L and larger tanks come with Tri-Clamp fittings and valve system.  500L tanks and smaller have bulkhead openings for screw-in fittings.  Inquire about an option for an improved Tri-Clamp fitting and valve system for the smaller tanks.  Tanks are 18 gauge stainless steel and available in sizes ranging from 100L (26 gal) to 2000L (528 gal).



Tanks come with:



• Stainless lid with pneumatic vinyl gasket allowing lid adjustment to fit volume in tank

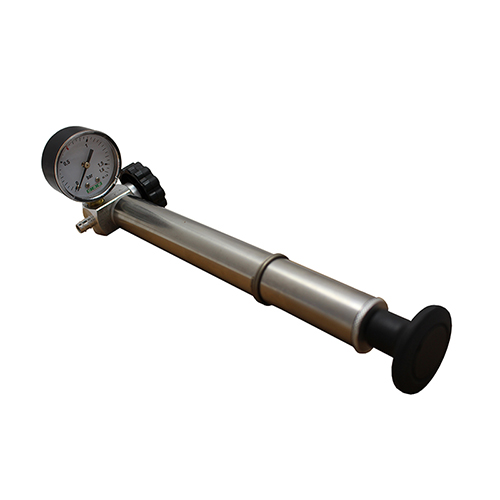

• Gasket air pump and system accessories

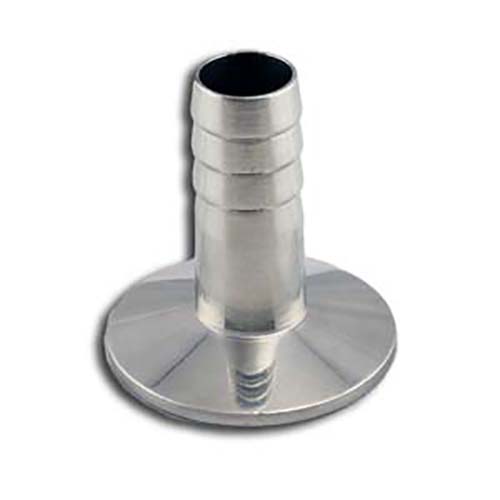

• Tri-Clamp bottom opening with Tri-Clamp fitting and butterfly valve with tanks 800L and larger.
• Bulkhead bottom opening with screw in Ghidi valve spigot on tanks 600L and smaller. Tri-Clamp fittings available as optional add-on.
• Fermentation Lock



Capacity (L)	Capacity (gal)	Size Dia x Ht	Price
100L	26	16.25” x 29.5”	$499.99
200L	52	20” x 39.5”	$699.99
300L	79	24.5” x 39.5”	$799.99
400L	106	29.5” x 40.5”	$849.99
500L	132	28.25” x 49.25”	$1399.99
600L	159	30.75” x 49.25”	$1699.99
800L	208	36.25” x 49.25”	$1,999.99
1000L	264	36.25” x 59”	$2,399.99
2000L	528	51.5” x 59”	$4,599.99



NOTE: These tanks are special order- call for pricing, availability, and delivery time. Ample supply of varied stainless steel fittings, including tri-clamp fittings and butterfly valves, are available, please inquire. Not eligible for free shipping.  All tanks larger than 100L must be shipped by Truck Freight.



Don't see the size you need or need specific options? Call us at 814-725-1314 to inquire, or see our wine making supply catalog for more details.  We can help you build any tank configuration you will need.
